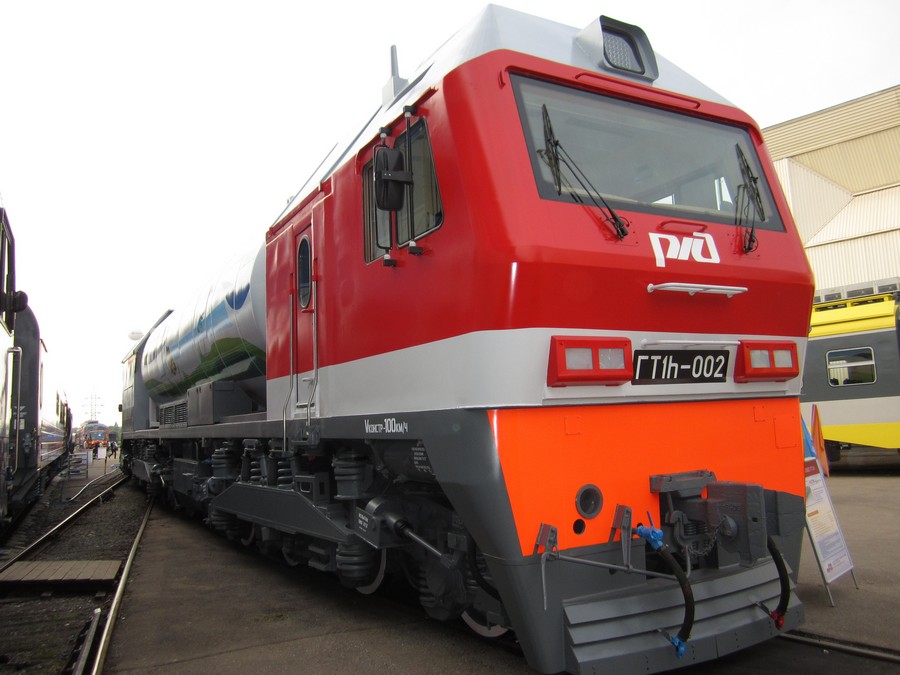

GT1H mainline gas turbine locomotive

GT1h gas turbine locomotive with electric transmission is designed for operation on non-electrified sections of public railways in the regions of Siberia and the Far North for driving freight trains of increased length and weight.

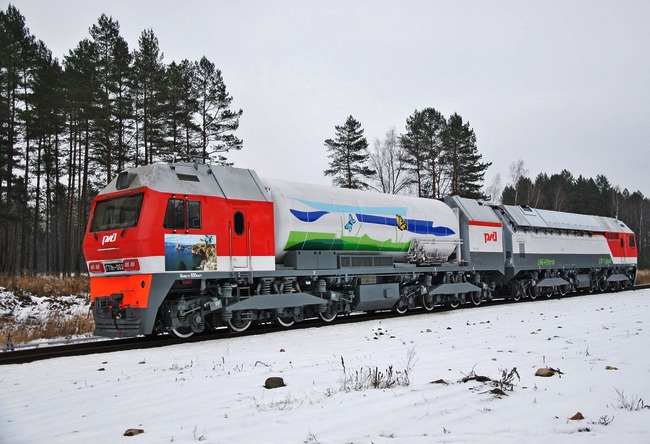

GT1h consists of two sections equipped with control cabins. One of them contains power plant, the other - necessary supply of fuel.

Advantage

More capacity with smaller dimensions

Savings due to use of liquefied natural gas as fuel

Environmental impact by reducing emissions into the atmosphere

GT1h was designed on a basis of the unique TEM7A locomotive underframe (manufactured by LTZ JSC)

Russian-made gas turbine motor is used as an autonomous energy source of the locomotive

Specifications

Parameters:	Value:
Type	Freight
Overall dimensions according to GOST 9238	1-Т
Power on the shafts of traction motors, kW (hp) Continuous mode Hourly mode	6,650 (9,040) 7,355 (10,000)
Static load from wheel pair on rails, kN (tf)	225,4 (23,0) ± 3%
Service weight	368 ± 3%
Design speed, km/h, no more	100
Traction force, kN (tf)* Continuous mode Hourly mode	775.1 (79) 775.1 (79)
Electric traction transmission type	AC - DC
Wheel arrangement	(2о+2о-2о+2о)+ (2о+2о-2о+2о)
Fuel capacity, kg, not less	20,000
Traversible curve radius, m, not less	125
Service life limit before disposal, years	40
